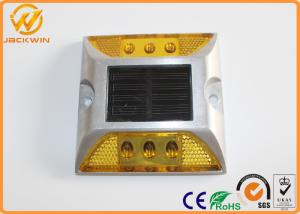

6 LED Aluminum Solar Lane Marker Reflective Road Studs Pavement Weight Capacity 30 tons
Road Stud-P26.pdf
Aluminium Road Studs
We are manufacturing and supplying a range of Road Safety Studs, including Aluminium Road Studs. These are made using aluminum alloys in the grades of AL 104, AL 105, AL 106 and AL 107. Offered in the option of single-way reflector and double-way reflector, aluminium road studs are appreciated for their good anti-press ability: which allows the stud to withstand the regular impact from the tires of vehicles.
Our reflective road studs have good ability of reflection. Diamond-type effect is created by the reflectors which makes it shine and look attractive under the lights, giving the driver a good visibility of reflection approx. of 150-200M. The colors of reflectors in the road studs can be white, yellow and red, depending on the client's requirements.
The range of road safety studs include:
Aluminium Road Studs With Shank
Aluminium Road Studs With Acrylic or Glass Beads Reflector
Aluminium Solar Road Studs
Our Aluminium Solar Road Studs are primarily intended for use on roads, but they can also be used in landscape, pathway, highways, parking lots, street, garden etc. Few unique attributes of our traffic studs include:
Strong aluminum alloy construction
Waterproof (depending on model chosen)
Maintenance free
Attractive looks
Compact designs
Specification:
| Product | Aluminum Solar Road Stud |
| Model Number | SRS-004 |
| Color | Yellow, Blue, Green and White |
| Material | Aluminum alloy and polycarbonate |
| Solar cell | Poly-crystalline silicon/single-crystalline silicon(3V, 75mA) |
| Storage battery | Ni-MH (1200mAH)/super capacitor(50F) |
| Light source | Super luminosity LED |
| LED quantity | 6 pcs or 3pcs |
| Luminous mode | Varying type/constant type |
| Work circumstance | -25° C to +75° C |
| Work time | More than 120 hrs for varying type, and above 72 hrs for constant type |
| IP rating | IP68 Resist compression |
| Service life | 5 years(Ni-MH )or 15 years(super capacitor) |
| View distance | Over 800m |
| Warranty period | 12 months |
Description:
1. Solar cell: Poly-crystalline silicon/single-crystalline silicon(3V, 75mA)
2. Storage battery: Ni-MH (1200mAH)/super capacitor(50F)
3. Light source: Super luminosity LED
4. LED quantity: 6 pcs or 3pcs
5. Light source color: Red, green, blue, white, yellow(for any choice)
6. Luminous mode: Varying type/constant type
7. Work time: More than 120 hrs for varying type, and above 72 hrs for constant type(standard luminosity intensity)
8. Work circumstance: -25° C to +75° C.
9. Material: Aluminum alloy and polycarbonate
10. IP rating: IP68 Resist compression: 30tons
11. Service life: 5 years(Ni-MH )or 15 years(super capacitor)
12. View distance: Over 800m
13. Warranty period:12 months
Applications:
1. Highway.
2. Bridge.
3. Construction Site.
Features:
1 Light control design,can work automatically according to the environmental illuminance.
2 Rainproof , it can work normally in the rainy day.
Competitive Advantage:
1. Reasonable Price
2. IP68,Anti-high(low) temperature.
3. Waterproof,Anti-sunburn and Rainproof.
4. Energy Saving and Environmental
Aluminum Solar Road Stud:
